RMS TITANIC

The world’s most famous liner


Quite possibly the most famous liner ever built, RMS Titanic was the second in a trio of 'Olympic'-class ships constructed for the White Star Line from 1909-1915. At the time of her launch, Titanic claimed the title for the largest ship in the world and boasted a standard of luxury never before seen at sea. Tragically she was lost with 1,503 passengers and crew after striking an iceberg in the North Atlantic on her maiden voyage.

‘Olympic-Class’ Liner

Length: 882’9”

Beam: 92’6”

Draught: 34’7”

Tonnage: 46,328 GRT

Max Speed: 24 kn


THE DRAWING


This illustration of 'Titanic' was completed over the course of four weeks from April to May 2018 by Michael C Brady and involved around 100 hours of drawing. Original plans and high-definition photographs were studied in order to maintain authenticity and special thanks is owed researchers Bruce Beveridge and David Cotgreave for their invaluable work in regards to the Olympic Class.

Dimensions: 1627mm x 5902mm, 300DPI

The base of No. 4 funnel showing hull details. Note the half-opened sliding windows along the ship's side.

The base of No. 4 funnel showing hull details. Note the half-opened sliding windows along the ship's side.

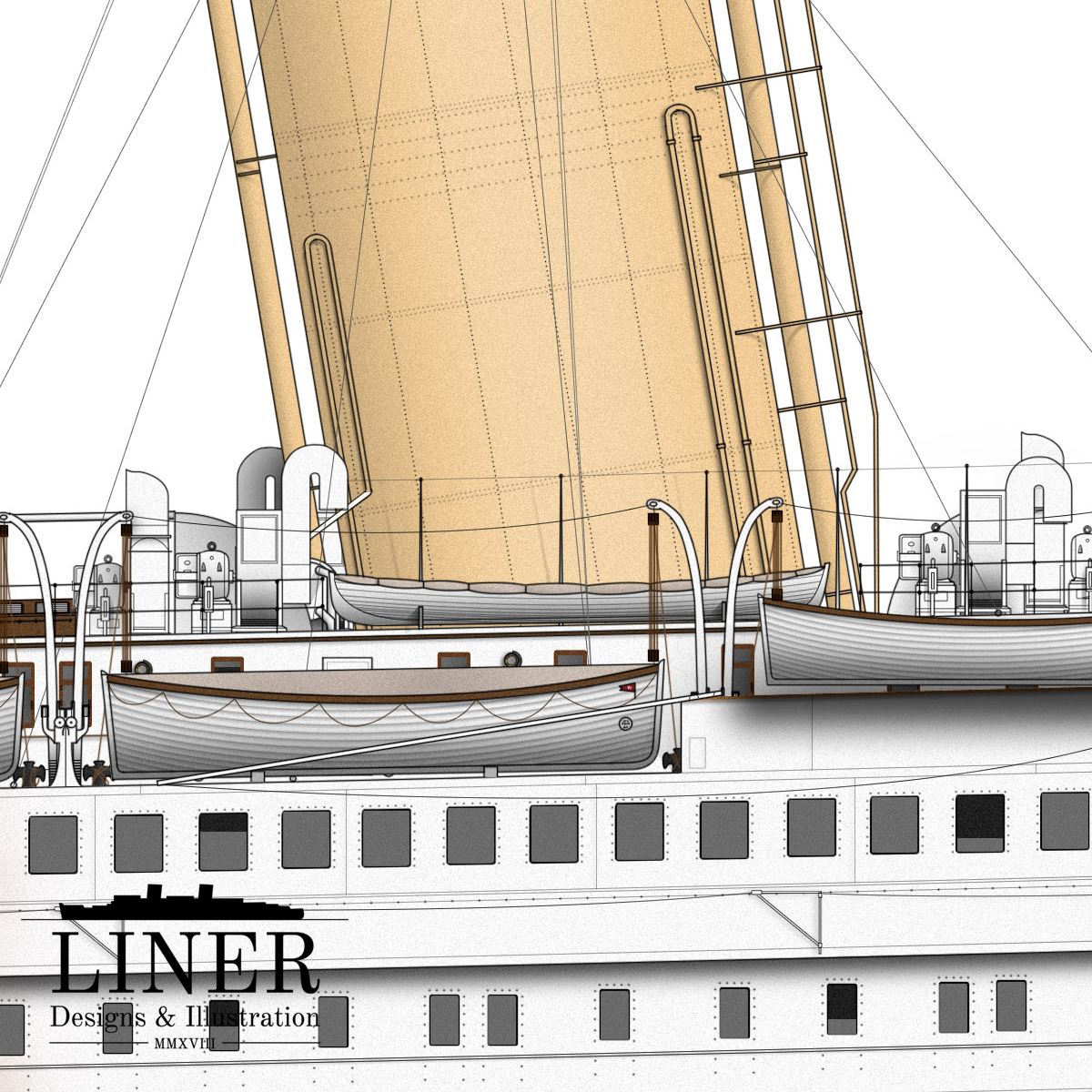

Detail showing the three different types of lifeboat used aboard Titanic. In the event of the sinking, the smaller 'collapsible' type boats at the foot of funnel No. 1 floated free of the ship rather than being properly launched.

Detail showing the three different types of lifeboat used aboard Titanic. In the event of the sinking, the smaller 'collapsible' type boats at the foot of funnel No. 1 floated free of the ship rather than being properly launched.

Titanic's forecastle deck, made famous in the 1997 film. In reality, passengers were not allowed forward of the cargo hatch (brown rectangular structure located in the center.)

Titanic's forecastle deck, made famous in the 1997 film. In reality, passengers were not allowed forward of the cargo hatch (brown rectangular structure located in the center.)

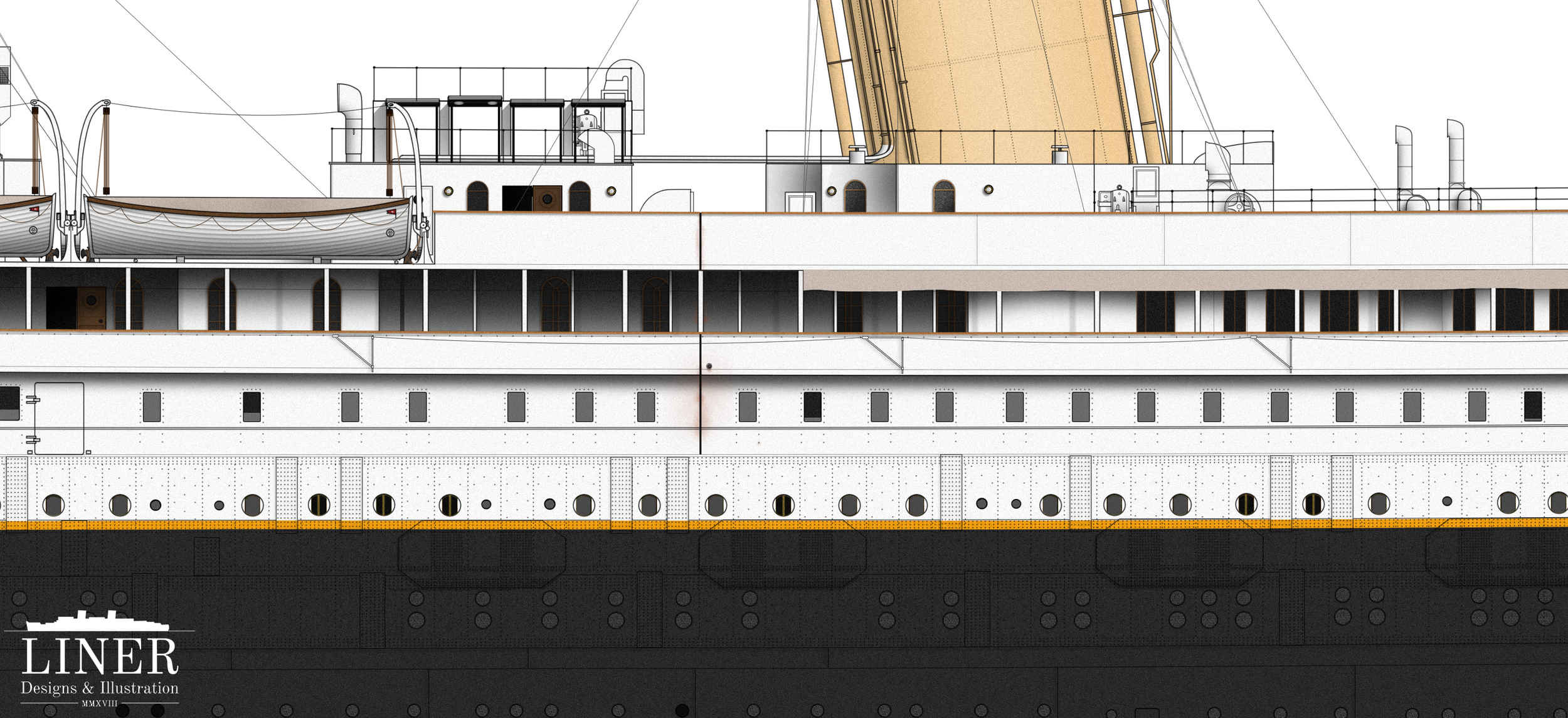

A section of hull amidships. Note the canvas screen erected along the promenade deck to provide shelter for passengers lounging on deck chairs in this area. The triangular frames mounted along the promenade deck are outriggers for aiding in loading the ship's coal bunkers way below at the waterline.

A section of hull amidships. Note the canvas screen erected along the promenade deck to provide shelter for passengers lounging on deck chairs in this area. The triangular frames mounted along the promenade deck are outriggers for aiding in loading the ship's coal bunkers way below at the waterline.
